Ford New Transit Medical Ambulance 8-seat Gasoline 4×2 (III)
Serial number vehicle technical parameters
1 Body size mm mm: 5341×2032×2445 (length× width× height)
2 wheelbase mm: 3300
3. The total weight of the fully loaded vehicle is kg: 3300.
4 Vehicle kerb mass kg: 2320
5 suspension system: McPherson suspension in front and leaf spring suspension in rear are independent.
6 Minimum ground clearance mm: 148
7 Minimum turning radius M: 6.15
8 fuel type: gasoline
9 Tank volume (L): 80
10 engine upright four-cylinder EFI
11 displacement ml: 1997
12 rated power kw (HP)/rpm: 162
13 Track (front/rear) mm mm: 1736/1720
14 Axle load (front/rear) kg kg: 1455/1845
15 Front suspension/rear suspension MM mm: 1014/1027, 1014/1207
16 Emission standard: GB18352.6-2016 National VI
17 drive mode front drive
Transmission: 5-speed manual transmission
19 top speed km/h: 156
20 tyre size model 215/65 r16c
21 Brake system front disc and rear disc
22 rated passenger (including driver) 8
Main configuration of vehicles
23 All-metal closed load-bearing body
24 ABS+EBD, driver's seat (main) airbag
Central lock, remote control key, front electric doors and windows, multi-function steering wheel.

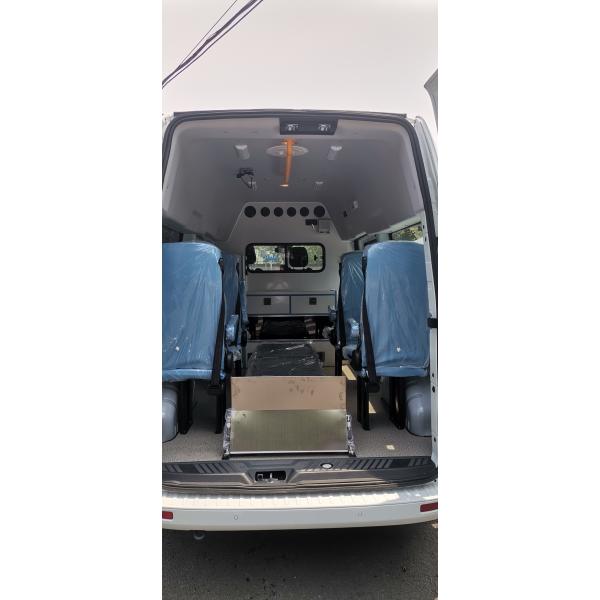

Original system of 26 cab medical cabin
27 black bumper, high brake light
28 spare tire, spare tools
30 Intelligent Vehicle Navigation
Body painting
1 white body+red powerful reflective tape 1
2 Medical cabin window 1
Alarm and lighting system
3 100 w alarm 1
4 LED embedded blue flashing warning light on the forehead of the roof 1
5 blue flashing warning light of the tailgate LED on the roof, blue white warning light of the left and right LED on the roof 6
7 LED lighting in medical cabin 2
Central power distribution system
9 a new type of ambulance vehicle power supply device 1000W pure sine wave inverter for installation and use.
